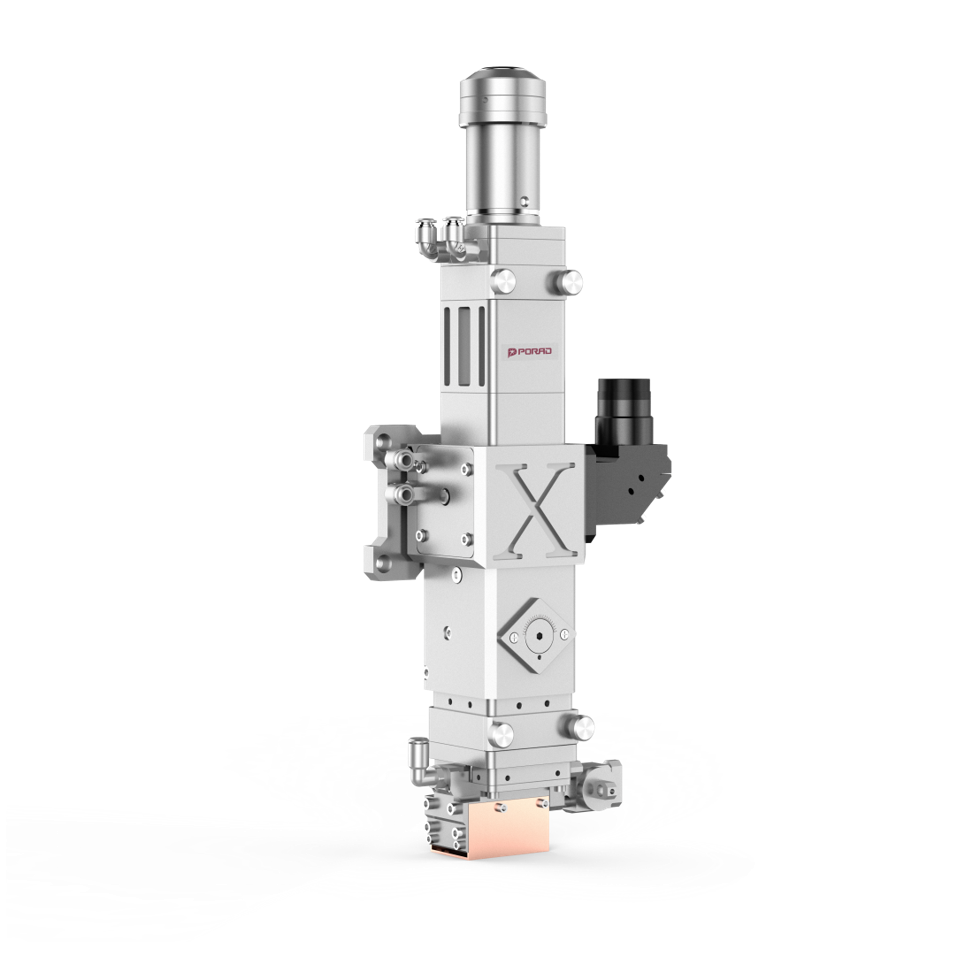

  1. Description: Type Powelder2.0 is a 4000 W optical fiber laser welding processing head introduced by PORAD in 2019.
  2. technical parameters: Interface type: QBH
Suitable optical fiber power: ≤ 4,000 W
Focus mirror focal distance: 200mm
Upper mirror specification: ø 30mm*1.5mm
Lower mirror specification: ø 38mm*2mm
CCD Connection module: TYPE-C, TYPE-CS
Auxiliary gas air pressure: ≤ 2.5MPa
Air knife: 6bar
  1. feature description: The ● expansion module is rich: extended weld tracking or locating work
  • Energy and equivalent modules, easy to achieve automatic welding.
  • High-quality airflow design: coaxial, paraxial protection nozzle and
  • The air knife adopts a smooth and efficient fluid structure design, and can be obtained
  • The best melting tank protection effect and welding slag blowing effect.
  • quality dust proof: dual protection lens design, add welding head
  • Service life.
  • Built-in cooling: The collimator and focus mirror seats are excellent
  • Water-cooled, to prolong the service life of the lenses.
