PoLeader2.0
PoLeader2.0
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
-
Important notice: the product is fully compatible with related Germany Precitec head.

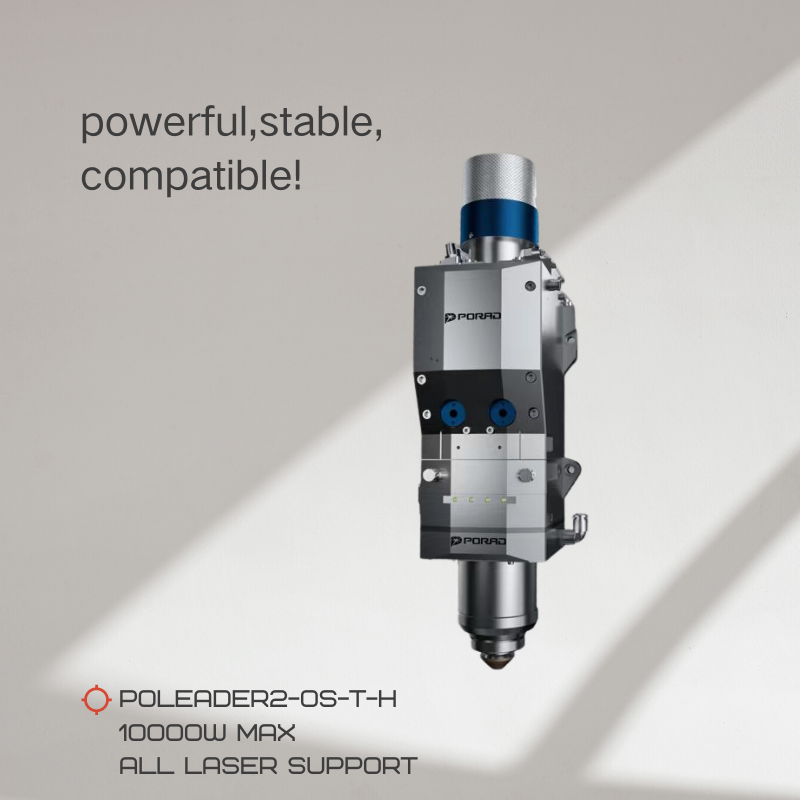

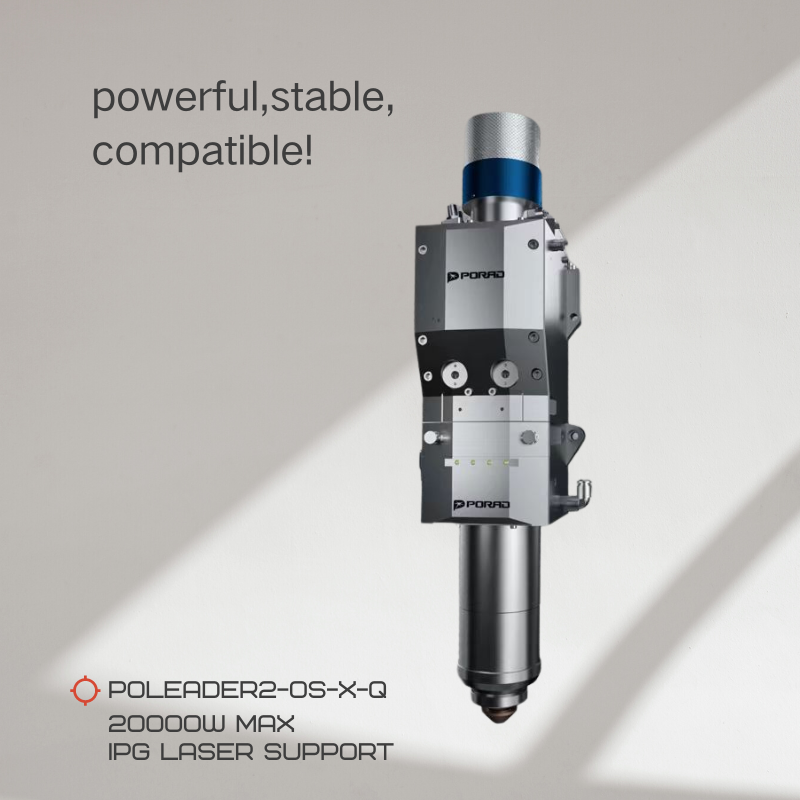

Pls make sure your laser generator brand first! IPG or Raycus, Max laser generator , because of different laser generator , the head interfaces are little bit differrent! - Description: The PoLeader2.0 model is an intelligent ultra-high power focal fiber cutting head in 2020.Adapting to Q+, QD and other fiber optic interfaces, the PoLeader2.0 with a maximum power of 20kW+ will bring a higher quality, faster cutting experience to the laser industry.The new design cooling method can bring cooling effect to optical lenses and ensure the stability of batch cutting; the new design solves the trouble of replacing focus protection and the risk of ash drop.
Suitable for fiber optic power: ≤ 20,000 W
Focus mirror focal distance: 200mm
Focus adjustment range: + 15mm ~ -30mm
Control mode: analog quantity control
Upper mirror specification: ø21.5mm*2mm
Lower mirror specification: ø37mm*7mm
Auxiliary gas air pressure: ≤ 2.5MPa
Weight: 6.5~7KG
feature description: 's new focus protection replacement mode provides great convenience for lens replacement.
- Fast Cool cooling technology, which can effectively cooling and cutting sheet surface, is solved
- The problem of poor cutting quality due to high temperature
- uses the whole body water cooling method, more efficient cooling optical lenses; ensure the plate batch
- Stability of the cutting.
- Can read the monitoring data at a mobile terminal via a wireless network
- Designed a new and efficient cutting air path that solved the plate
- Directionality of cutting during cutting,
- Ensure the consistency of all directions of the finished product effect
